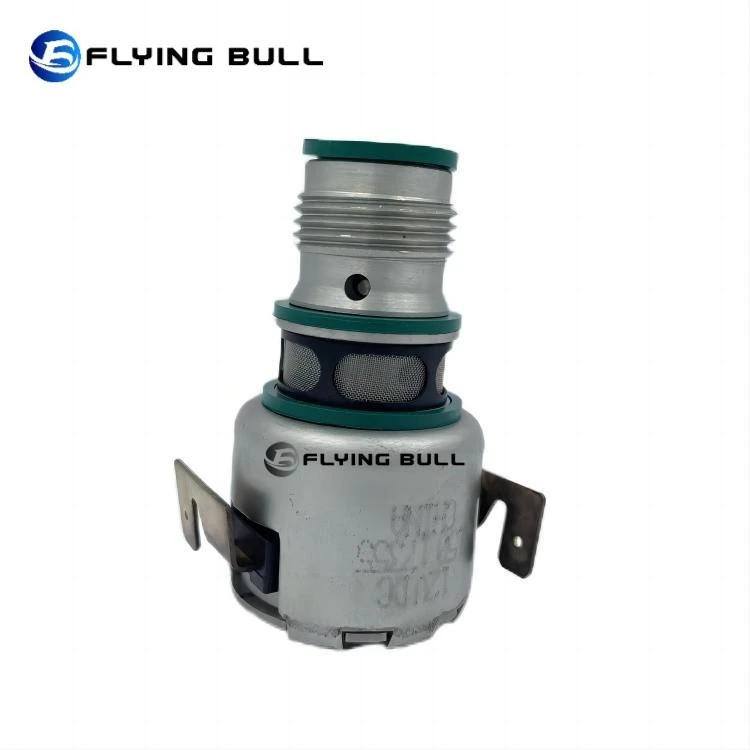

Loader Gearbox Solenoid Valve
Product Description: Loader Gearbox Solenoid Valve for Cummins Engines (3871711) A loader that keeps running after you turn off the key is frustrating and unsafe. The usual cause is a shutdown solenoid that fails to close fully. The loader gearbox solenoid valve (OE No. 3871711) from Flying Bull is a direct replacement designed for Cummins ISM11 and QSM11 engines in excavators and heavy loaders. Critical Function for Engine Shutdown This 3871711 solenoid valve controls fuel flow to the engine. When you turn the start switch off, the solenoid coil loses power. The magnetic field disappears. A spring plate then pushes the valve plate to shut the oil circuit. That action cuts fuel and stops the engine within seconds. However, a worn or contaminated valve does not seal tightly. Fuel continues to flow past the valve plate into the fuel passage. The pressure in front of the injector metering hole cannot drop fast enough to reach flameout pressure. The result? The engine keeps running for tens of seconds – or even several minutes – after you turn off the key. Root Causes of Failure Why does the loader gearbox solenoid valve fail to close tightly? Two main reasons: Manufacturing or wear issues – The valve plate or seat becomes damaged over time. Fuel contamination – Dirt, rust, or other particles get inside the valve. These impurities can pad the valve disc open or make it stick, preventing a tight seal. Poor fuel cleanliness is a common root cause. Impurities may also enter during maintenance if you do not keep the oil circuit clean. Once contamination starts, the problem will return unless you fix the fuel quality. Temporary Workaround and Permanent Solution If the engine will not shut off, try increasing the throttle quickly. The sudden fuel flow can sometimes push the valve plate closed, stopping the engine immediately. This is only a short-term fix. The real solution is to clean or replace the solenoid valve and, more importantly, improve fuel cleanliness. Flying Bull’s loader gearbox solenoid valve is 100% brand new. It comes from Zhejiang, China, with a 1‑year warranty. Delivery takes 5–7 working days. For fleet owners and heavy equipment mechanics, keeping a spare 3871711 solenoid valve on hand saves downtime when a Cummins engine refuses to shut down.
Product Introduction
Products Description
|
OE NO.: 3871711 |
Media: Oil |
|
Warranty: 1 YEAR |
Condition: New, 100% Brand-new |
|
Place of Origin: Zhejiang, China |
Temperature: Ordinary Temperature |
|
Brand Name: FLYING BULL |
Quality: High-Quality |
|
Delivery: 5-7 Working Days |
Apply: Cummins ISM11/ QSM11 |
Loader gearbox Solenoid Valve 3871711 is a solenoid valve used in the Cummins ISM11/ QSM11 excavator engine exhaust brake Repair Cummins diesel engine troubleshooting.
When the start switch is turned to the closed position, the solenoid coil of the stop Loader gearbox Solenoid Valve loses current, the suction disappears, and the valve plate of the stop solenoid valve closes the oil circuit under the thrust of the spring plate, so that the engine is turned off. If the solenoid valve is not tightly closed, it will continue to supply oil to the fuel passage, so that the oil pressure in front of the injector metering hole can not be timely reduced to the flameout oil pressure, resulting in flameout difficulties. If the solenoid valve is not tightly closed, the length of the extinguishing time is also different, which can reach tens of seconds to several minutes.
The shutdown solenoid valve is not strictly closed, in addition to the reasons for processing and manufacturing, and the cleanliness of the fuel has a lot to do with it. When the fuel cleanliness is low, impurities will invade the solenoid valve, pad the valve disc or make it move stuck, resulting in loose closing; Impurities may also be directly invaded by not paying attention to the cleanliness of the oil circuit during maintenance. When it is difficult to turn off the solenoid valve because it is not strictly closed, you can often increase the throttle to impact the valve plate, so that the oil circuit is closed and the engine is turned off immediately. After the fault occurs, the solenoid valve should be cleaned to eliminate, but the most important thing is to improve the cleanliness of the fuel, otherwise the fault will occur repeatedly.
Company Introduction
Frequently Asked Questions (FAQs)
1. Which engines use the loader gearbox solenoid valve 3871711?
This solenoid valve is designed for Cummins ISM11 and QSM11 diesel engines. These engines are commonly found in excavators, heavy loaders, and other construction machinery. Always check your original OE number (3871711) before ordering.
2. What symptom indicates a failing 3871711 solenoid valve?
The clearest sign is the engine continuing to run after you turn the start switch off. Instead of stopping within seconds, it may run for tens of seconds or even several minutes. In severe cases, the engine may not shut down at all without using a workaround.
3. Why does a bad solenoid valve cause delayed engine shutdown?
When you turn off the start switch, the solenoid coil should lose power and release the valve plate. A spring then pushes the plate to close the oil circuit. If the valve plate does not seal tightly – due to wear, dirt, or a stuck disc – fuel keeps flowing. The injector metering hole cannot drop pressure fast enough, so the engine keeps running.
4. What are the common reasons for poor sealing in this shutdown solenoid?
Two main causes: manufacturing or wear defects (damaged valve plate or seat), and fuel contamination. Dirt, rust, or other particles in the fuel can lodge between the valve disc and seat, holding the valve open. Impurities can also enter during maintenance if the oil circuit is not kept clean.
5. Is there a temporary way to stop the engine if the solenoid fails to close?
Yes. Try increasing the throttle quickly. The sudden surge in fuel flow can sometimes push the valve plate closed, stopping the engine immediately. However, this is only a short-term workaround. The proper fix is to clean or replace the solenoid valve and improve fuel cleanliness.
6. How do I prevent this problem from happening again after replacing the valve?
Focus on fuel cleanliness. Use clean, high-quality diesel. Replace fuel filters at recommended intervals. Keep the fuel system free of dirt and water during maintenance. If you ignore fuel quality, the new solenoid valve will likely fail the same way. Cleaning the solenoid may help temporarily, but improving fuel cleanliness is the long-term solution.
7. Does this solenoid valve come with a warranty?
Yes. Flying Bull provides a 1‑year warranty against manufacturing defects. Damage caused by contaminated fuel, poor maintenance practices, or improper installation is not covered. Always use clean fuel and replace filters when installing a new solenoid.
